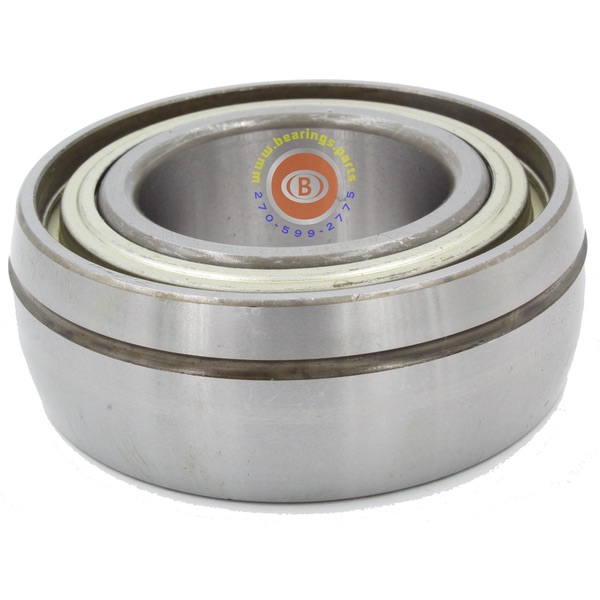

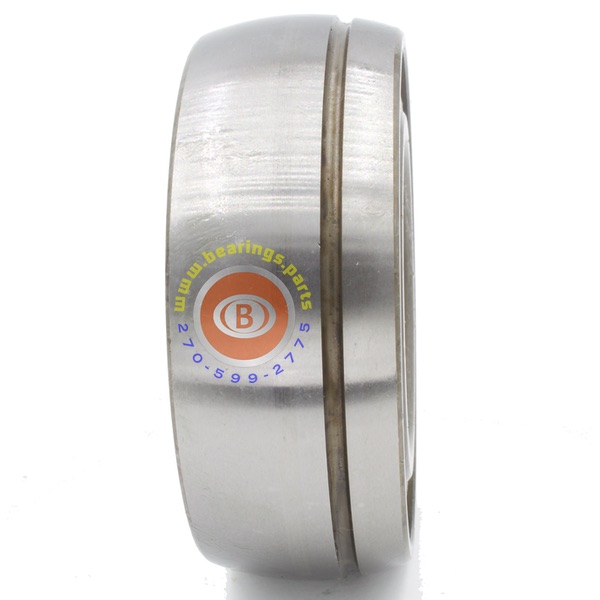

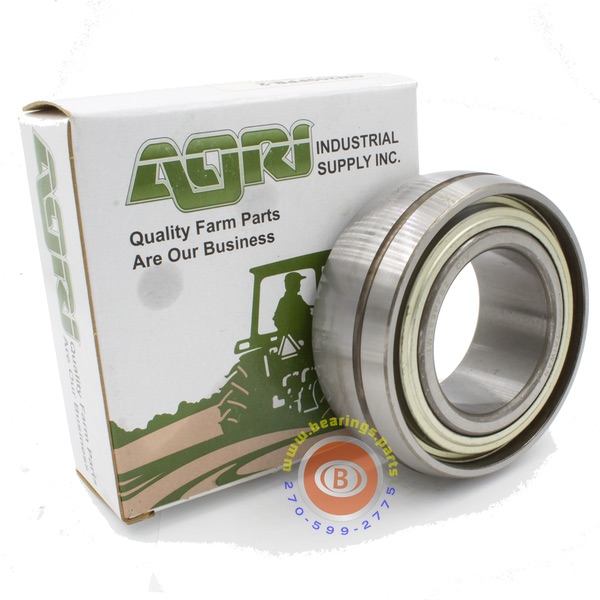

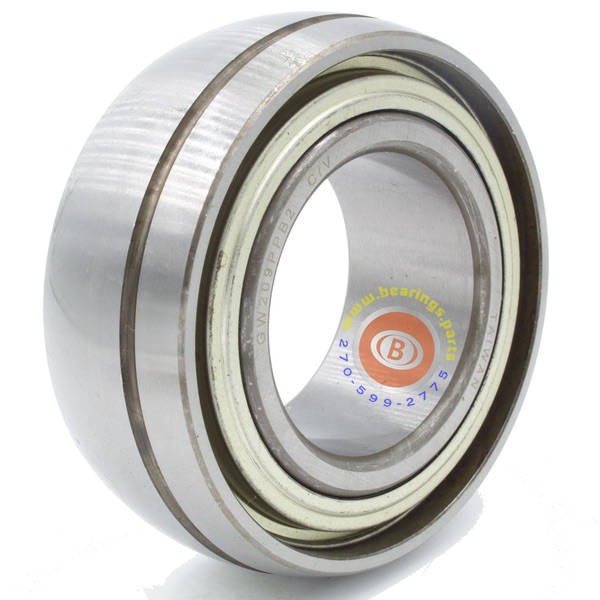

GW209PPB2, DS209TTR2, 3AC09D1 DISC HARROW BEARING

GW209PPB2, DS209TTR2, 3AC09D1 DISC HARROW BEARING

GW209PPB2 disc harrow bearing diagram

Dimension A:  1.7717" Round

Dimension B:   3.3465" Spherical

Dimension C:   1.188"

Dimension D:   1.188"

Greasable

High Quality Import.


Fits:

Burch Plow 208BW, 209BW Disc



Technical
Bore Size45mm
Inner Ring Width1.188"
Outer Dimension85mm
Outer Ring DesignRounded
Outer Ring Width1.188"
LubricationGreasable

Write a review

Please login or register to review



Fafnir: GW209PPB2



Peer: GW209PPB2



BCA: DS209TTR2



Link-Belt: RG3-209E3



NTN: 3AC09D1



Burch: 208-12



Bush-Hog: 14-4-5



Case-IH: 1251062C91



Case: H747410



Farmhand: 310072



Ford: 7200460, 113903



Kewanee: B7778



Massey: 835050M1



New Holland: 276882

  • Views: 7392
  • Brand: KML Bearing USA
  • Product Code: GW209PPB2
  • Availability: In Stock
  • $19.76
  • 10 or more $17.76
